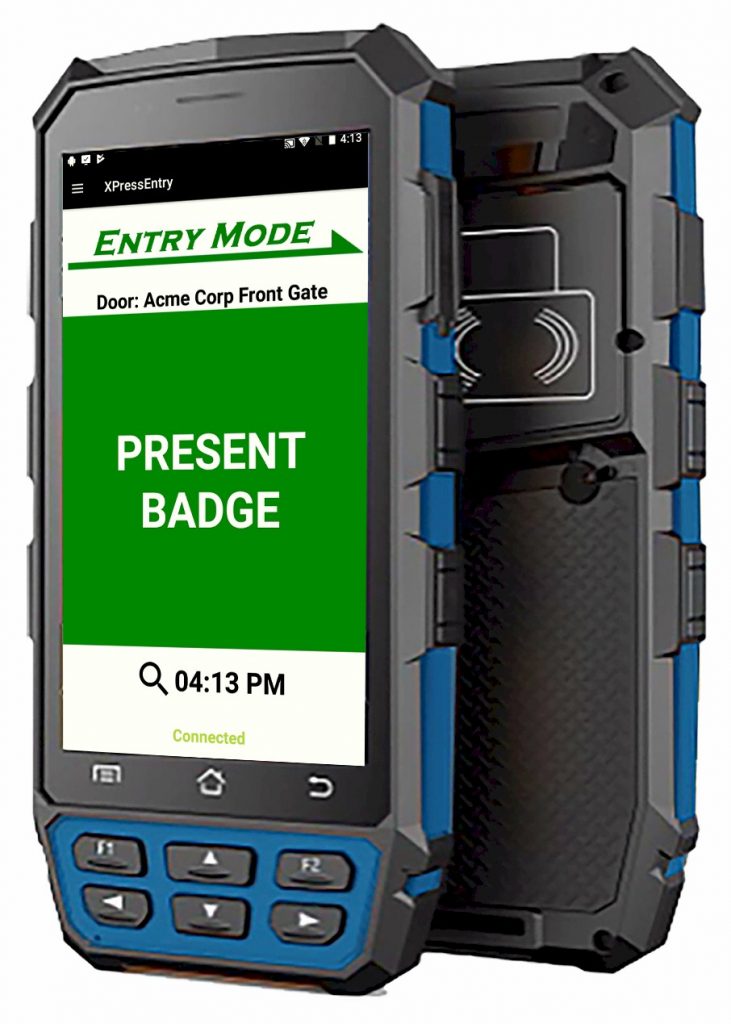

XPID100 PDA- Android Handheld Badge Verifier

XPID is a rugged Android handheld badge verifier. It provides excellent performance barcode, RFID, iClass, and Prox reading.

Benefits Include:

  • Handheld PDA integrated with Multi-Technology badge reader
  • Supports iClass, Prox, Indala, Mifare, PIV and many more!
  • Full RFID SDK available for card read/write requirements
  • IP65 rated device (Dust, Heavy Rain, Snow, 1.5m drop)
  • GPRS, WiFi, Bluetooth, 1D/2D Barcode, GPS, Camera Options

Performance Characteristics

Processor Quad A53 1.3GHz
Operating System Android 7.0
Memory 2GB RAM, 16GB ROM, MicroSD (max 32GB expansion)
Drop Spec 5ft./1.5 m drop to concrete across the operating temperature range
Barcode Engine 1D Laser or 2D CMOS Imager Barcode Scanner (Optional)
Camera 8.0 Mega Pixel Auto Focus with LED Flash
Battery Supply
Gun Version
Rechargeable li-ion polymer, 3.7V, 8100mAh
Battery Supply
PDA Version
Rechargeable li-ion polymer, 3.7V, 4500mAh
Battery Supply
Power Adaptor
Input AC110V ~240V / Output DC 5V 3A

Physical Characteristics

Dimensions
Handheld without cradle
170mm(H)x85mm(W)x23mm(D)±2 mm
Dimensions
Handheld with cradle
197mm(H)x127mm(W)x95mm(D)
Display 5.0 inch Gorilla Glass 3 9H TFT-LCD(720×1280) touch screen with backlight
Operating Temp. 20C to 50C
Storage Temp. -20C to 70C
Humidity 5%RH to 95%RH (non-condensing)
Expansion Slot 2 PSAM, 1 SIM, 1 TF
Dust & Water Proof IP65, IEC compliance
Fingerprint (Optional) Capacitive area sensor

Network Characteristics

WLAN 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n
Bluetooth Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0ISO15693
64 Bits ID E005100
WWLAN TDD-LTE, FDD-LTE, WCDMA, GSM/GPRS/Edge
GPS GPS (embedded A-GPS), accuracy of 5 m

RFID Module Support

Radio Frequency & Tag Support
LF
(125KHz/134.2KHz): HID Prox / Indala / EM / CasiRusco / Pyramid
Radio Frequency & Tag Support
HF
(13.56MHz) iClassSE, SEOS, Mifare, PIV, Felica, Legic, ISO14443, ISO15693
Radio Frequency & Tag Support
UHF
(902-928MHZ, 865.6-867.6MHz): EPC C1G2, ISO 18000-6C
Radio Frequency & Tag Support
Active
(433MHz)

Cradle

Standard Interface USB / Power Jack / Extra Battery Charger
Ethernet Interface RJ-45 Ethernet Interface (optional cable)
