XPIK Kiosk

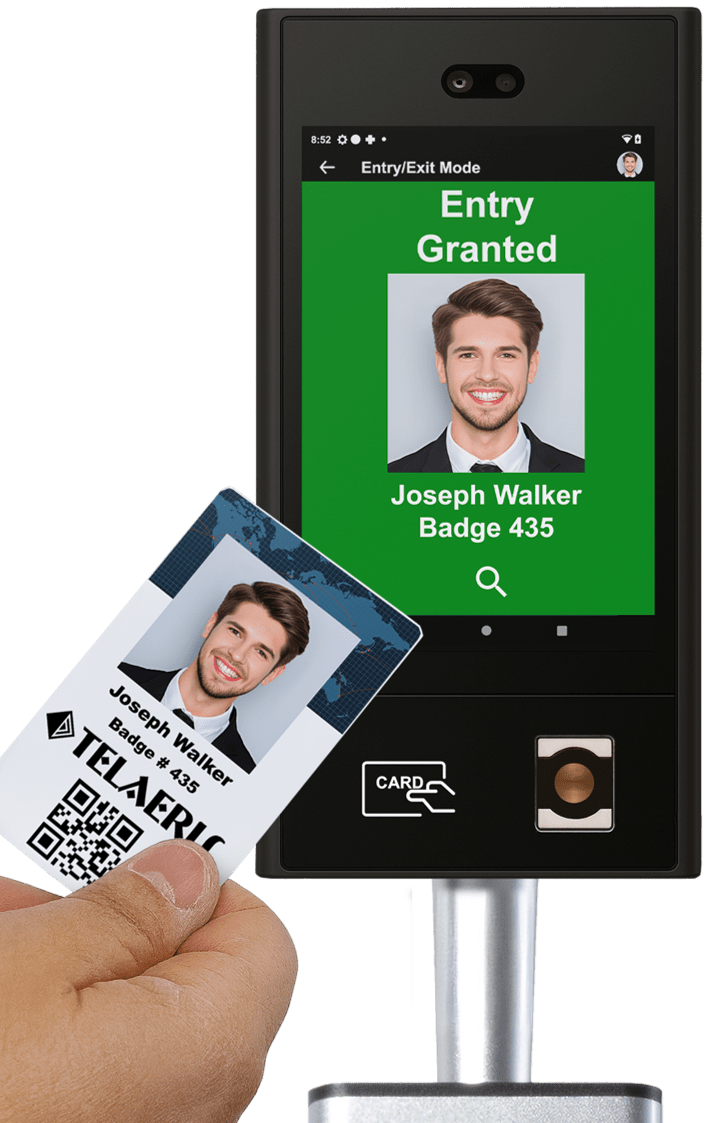

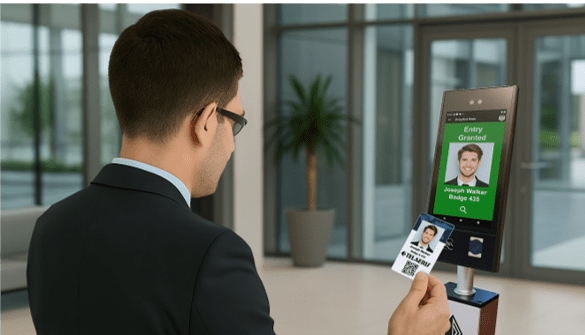

Introducing the XPIK Kiosk Reader, the intelligent XPressEntry-powered kiosk designed to secure any workplace entrance with more capability than a traditional door reader. Scan credentials, track entries and exits, open doors, and so much more.
The XPIK series devices can be interconnected with a broad range of peripherals such as powered doors, turnstiles, automation equipment, and more. With output interfaces of RS-485, digital output lines, relay triggers, Wiegand, and OSDP, connecting and controlling the facility has never been easier.
Benefits Include:
- Kiosk device integrated with a multi-technology badge reader
- Supports iClass, Prox, Indala, Mifare, PIV, Safetrust & many more!

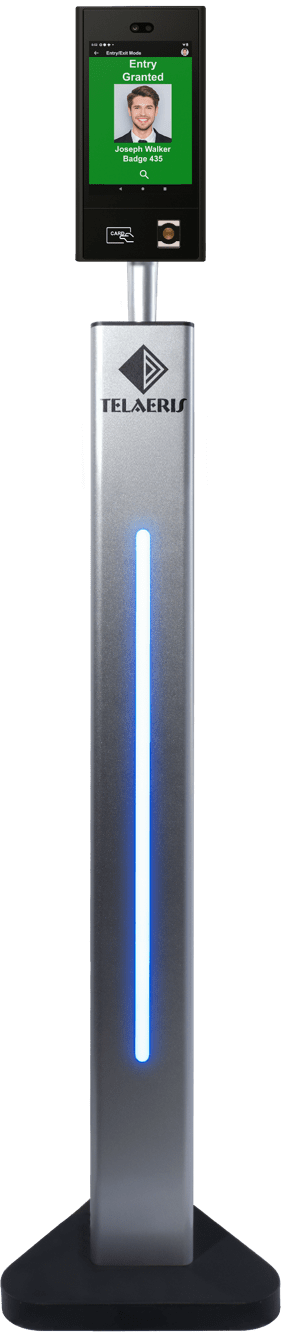

- Form factors include standing, desktop, or wall- or pole-mounted
- Supports ID badge scanning, fingerprint scanning, or facial recognition
- Cellular, WiFi, Bluetooth, GPS, Camera, and offline mode available
Performance Characteristics
| Processor |
64bit Eight Core Computer Vision CPU |
| Operating System |
Android 9.0 |
| Memory |
2GB LPDDR3 16GB eMMC |
| SDK |
Android LCDP, PUSH SDK |
Screen
| Screen Size |
8-inch TFT LCD Color Screen (800 x 1280) |
| Screen Type |
Capacitive Touch Screen |
Camera
| Pixel |
2MP |
| Type |
Binocular Camera |
| Focus Distance |
11.8-inch to 47.2 -inch (0.3 m to 1.2 m) |
Interface
| Network Interface |
Ethernet (RJ45, 1000M), WiFi (optional 4G) |
| Serial Interface |
1 RS232 Serial Port, 1 RS485 Serial Port |
| USB Interface |
1 USB 3.0, 1 USB 2.0, 1 Micro USB |
| Relay Output Interface |
1 Door Open Signal Output |
| Wiegand Interface |
1 input, 1 output |
RFID Module Support
| Low Frequency (LF) |
HID, Indala, FarPointe, EM, CasiRusco, Pyramid, Securakey |
| High Frequency (HF) |
iClass, SEOS, Mifare, DESFire, PIV, CAC, TWIC, Felicia, Legic, Allegion, STid, ISO14443, ISO15693, ISO14443 A/B, Gallagher, Paxton, FarPointe |
| Ultra-High Frequency (UHF) |
EPC GEN2, or ISO 18000-6C |
| Mobile Credentials |
HID Mobile Access® solutions including HID employee badge and Student ID in Apple Wallet, Safetrust, KleverKey, FarPointe |
| Fingerprint Reader |
(optional) 1:1, 1:N |
General Parameters
| Power Supply |
Hand-strap, 5V4A charging adapter |
| Operating Temperature |
14° F to 122 ° F ( – 10°C to 50 °C) |
| Working Humidity |
<90%RH |
| Installation Method |
Turnstile, Wall, Pole, Desktop, Stand-Alone Kiosk |
| Protection Level |
IP66 w/o Fingerprint /QR Code Reader, IP65 with Fingerprint / QR Code Reader, IK04 |
Other
| Compliance |
FCC, CE, ISO9001, ISO14001
NDAA 2019, Section 889 |
